Specifies the parameters for the FlattenLayer. More...

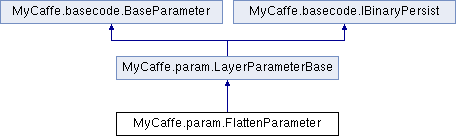

Inheritance diagram for MyCaffe.param.FlattenParameter:

Public Member Functions
	FlattenParameter ()
	Constructor for the parameter. More...

override object	Load (System.IO.BinaryReader br, bool bNewInstance=true)
	Load the parameter from a binary reader. More...

override void	Copy (LayerParameterBase src)
	Copy on parameter to another. More...

override LayerParameterBase	Clone ()
	Creates a new copy of this instance of the parameter. More...

override RawProto	ToProto (string strName)
	Convert the parameter into a RawProto. More...

Public Member Functions inherited from MyCaffe.param.LayerParameterBase
	LayerParameterBase ()
	Constructor for the parameter. More...

virtual string	PrepareRunModelInputs ()
	This method gives derivative classes a chance specify model inputs required by the run model. More...

virtual void	PrepareRunModel (LayerParameter p)
	This method gives derivative classes a chance to prepare the layer for a run-model. More...

void	Save (BinaryWriter bw)
	Save this parameter to a binary writer. More...

abstract object	Load (BinaryReader br, bool bNewInstance=true)
	Load the parameter from a binary reader. More...

Public Member Functions inherited from MyCaffe.basecode.BaseParameter
	BaseParameter ()
	Constructor for the parameter. More...

virtual bool	Compare (BaseParameter p)
	Compare this parameter to another parameter. More...

Static Public Member Functions
static FlattenParameter	FromProto (RawProto rp)
	Parses the parameter from a RawProto. More...

static List< int >	Reshape (int nParamAxis, int nParamEndAxis, List< int > rgShape, int nStartAxis=-1, int nEndAxis=-1)
	Calculate the reshape array given the parameters. More...

Static Public Member Functions inherited from MyCaffe.basecode.BaseParameter
static double	ParseDouble (string strVal)
	Parse double values using the US culture if the decimal separator = '.', then using the native culture, and if then lastly trying the US culture to handle prototypes containing '.' as the separator, yet parsed in a culture that does not use '.' as a decimal. More...

static bool	TryParse (string strVal, out double df)
	Parse double values using the US culture if the decimal separator = '.', then using the native culture, and if then lastly trying the US culture to handle prototypes containing '.' as the separator, yet parsed in a culture that does not use '.' as a decimal. More...

static float	ParseFloat (string strVal)
	Parse float values using the US culture if the decimal separator = '.', then using the native culture, and if then lastly trying the US culture to handle prototypes containing '.' as the separator, yet parsed in a culture that does not use '.' as a decimal. More...

static bool	TryParse (string strVal, out float f)
	Parse doufloatble values using the US culture if the decimal separator = '.', then using the native culture, and if then lastly trying the US culture to handle prototypes containing '.' as the separator, yet parsed in a culture that does not use '.' as a decimal. More...

Properties
int	axis `[getset]`
	Specifies the first axis to flatten: all preceding axes are retained in the output. May be negative to index from the end (e.g., -1 for the last axis). More...

int	end_axis `[getset]`
	Specifies the last axis to flatten: all following axes are retained in the output. May be negative to index from the end (e.g., -1 for the last axis). More...

Additional Inherited Members
Public Types inherited from MyCaffe.param.LayerParameterBase
enum	LABEL_TYPE { NONE , SINGLE , MULTIPLE , ONLY_ONE }
	Defines the label type. More...

Detailed Description

Specifies the parameters for the FlattenLayer.

See also: Representation Learning and Pairwise Ranking for Implicit and Explicit Feedback in Recommendation Systems by Mikhail Trofimov, Sumit Sidana, Oleh Horodnitskii, Charlotte Laclau, Yury Maximov, and Massih-Reza Amini, 2017.; Deep Neural Networks to Enable Real-time Multimessenger Astrophysics by Daniel George, and E. A. Huerta, 2016.

Definition at line 19 of file FlattenParameter.cs.

Constructor & Destructor Documentation

◆ FlattenParameter()

MyCaffe.param.FlattenParameter.FlattenParameter ( )

Constructor for the parameter.

Definition at line 25 of file FlattenParameter.cs.

Member Function Documentation

◆ Clone()

override LayerParameterBase MyCaffe.param.FlattenParameter.Clone ( )

virtual

Creates a new copy of this instance of the parameter.

Returns: A new instance of this parameter is returned.

Implements MyCaffe.param.LayerParameterBase.

Definition at line 72 of file FlattenParameter.cs.

◆ Copy()

override void MyCaffe.param.FlattenParameter.Copy ( LayerParameterBase src )

virtual

Copy on parameter to another.

Parameters

src	Specifies the parameter to copy.

Implements MyCaffe.param.LayerParameterBase.

Definition at line 64 of file FlattenParameter.cs.

◆ FromProto()

static FlattenParameter MyCaffe.param.FlattenParameter.FromProto ( RawProto rp )

static

Parses the parameter from a RawProto.

Parameters

rp	Specifies the RawProto to parse.

Returns: A new instance of the parameter is returned.

Definition at line 99 of file FlattenParameter.cs.

◆ Load()

override object MyCaffe.param.FlattenParameter.Load	(	System.IO.BinaryReader	br,
		bool	bNewInstance = `true`
	)

Load the parameter from a binary reader.

Parameters

br	Specifies the binary reader.
bNewInstance	When true a new instance is created (the default), otherwise the existing instance is loaded from the binary reader.

Returns: Returns an instance of the parameter.

Definition at line 52 of file FlattenParameter.cs.

◆ Reshape()

static List< int > MyCaffe.param.FlattenParameter.Reshape	(	int	nParamAxis,
		int	nParamEndAxis,
		List< int >	rgShape,
		int	nStartAxis = `-1`,
		int	nEndAxis = `-1`
	)

static

Calculate the reshape array given the parameters.

Parameters

nParamAxis	Specifies the parameter start axis.
nParamEndAxis	Specifies the parameter end axis.
rgShape	Specifies the shape parameter.
nStartAxis	Specifies the already initialized canonical start axis, or -1 if not initialized (default = -1).
nEndAxis	Specifies the already initialized canonical end axis or -1 if not initialized (default = -1).

Returns

Definition at line 122 of file FlattenParameter.cs.

◆ ToProto()

override RawProto MyCaffe.param.FlattenParameter.ToProto ( string strName )

virtual

Convert the parameter into a RawProto.

Parameters

strName Specifies the name to associate with the RawProto.

Returns: The new RawProto is returned.

Implements MyCaffe.basecode.BaseParameter.

Definition at line 84 of file FlattenParameter.cs.

Property Documentation

◆ axis

int MyCaffe.param.FlattenParameter.axis

getset

Specifies the first axis to flatten: all preceding axes are retained in the output. May be negative to index from the end (e.g., -1 for the last axis).

Definition at line 34 of file FlattenParameter.cs.

◆ end_axis

int MyCaffe.param.FlattenParameter.end_axis

getset

Specifies the last axis to flatten: all following axes are retained in the output. May be negative to index from the end (e.g., -1 for the last axis).

Definition at line 45 of file FlattenParameter.cs.

The documentation for this class was generated from the following file:

C:/Data/Data/SS_Projects/Intelligence/GitHub/MyCaffe/MyCaffe/param/FlattenParameter.cs
